160 AMP AC/DC HF ARC start & Pulse Modulation TIG Welder



How complicated is this tool? Knobs and multi stage switches all over the place, this is a reel geek tool.

Welcome to the world of the Inverter AC / DC TIG. Once you study the front panel over a cup of coffee, you will notice it is not all that difficult to work out. You will see that each knob relates to a part of the square wave drawn on the panel.

From Left to Right

  * Pre flow gas time
  * Up slope time
  * Pulse width
  * Pulse cycle / frequency
  * Pulse depth ( Background current )
  * Down slope time
  * Post flow gas time

  The other switches allow you to select AC or straight DC or DC low frequency pulse or DC high frequency pulse. You can also choose stick or TIG modes and various combinations of trigger latching.




This machine has high frequency arc ingnition and supports the connection of a variable control foot switch.

  I sell these machines via ebay or you may buy direct from Tokentools. Check out the shop button on the top tool bar.

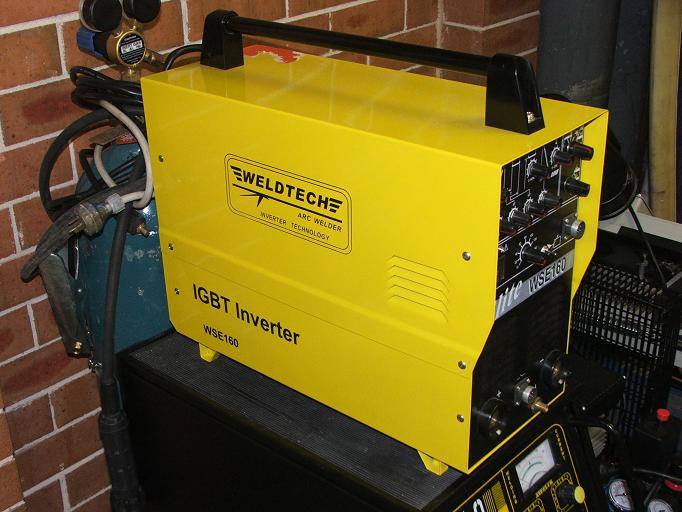

I keep the TIG on top of the MIG. This way they can both share the shielding gas via a T Piece.



Inverter technology enables all kinds of wonderfull waveform manipulation to achieve a myriad of welding results. This is the ultimate workshop accessory.

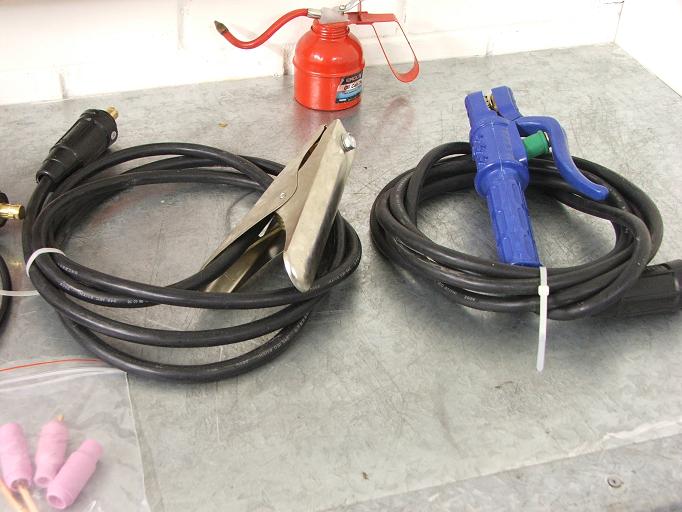

A shot of the earth clamp and stick electrode holder included with the TIG.



A shot of the TIG gun with included collets and gas shrouds.
